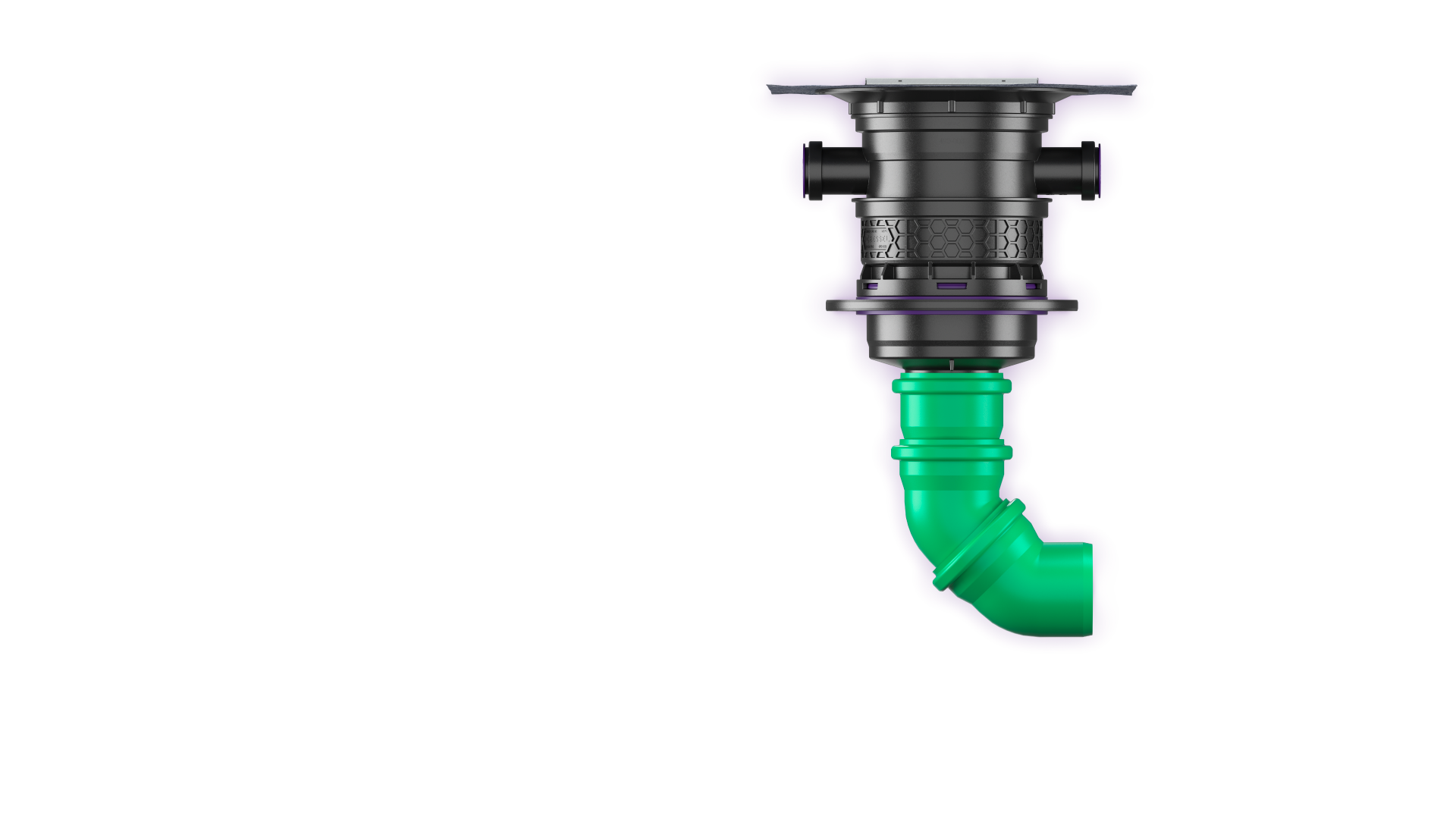

The new Universale Plus basement drain with backwater valve according EN 13564 – in the base plate rather than underneath, for the first time.
Product advantages
Drain body
Simply thought out

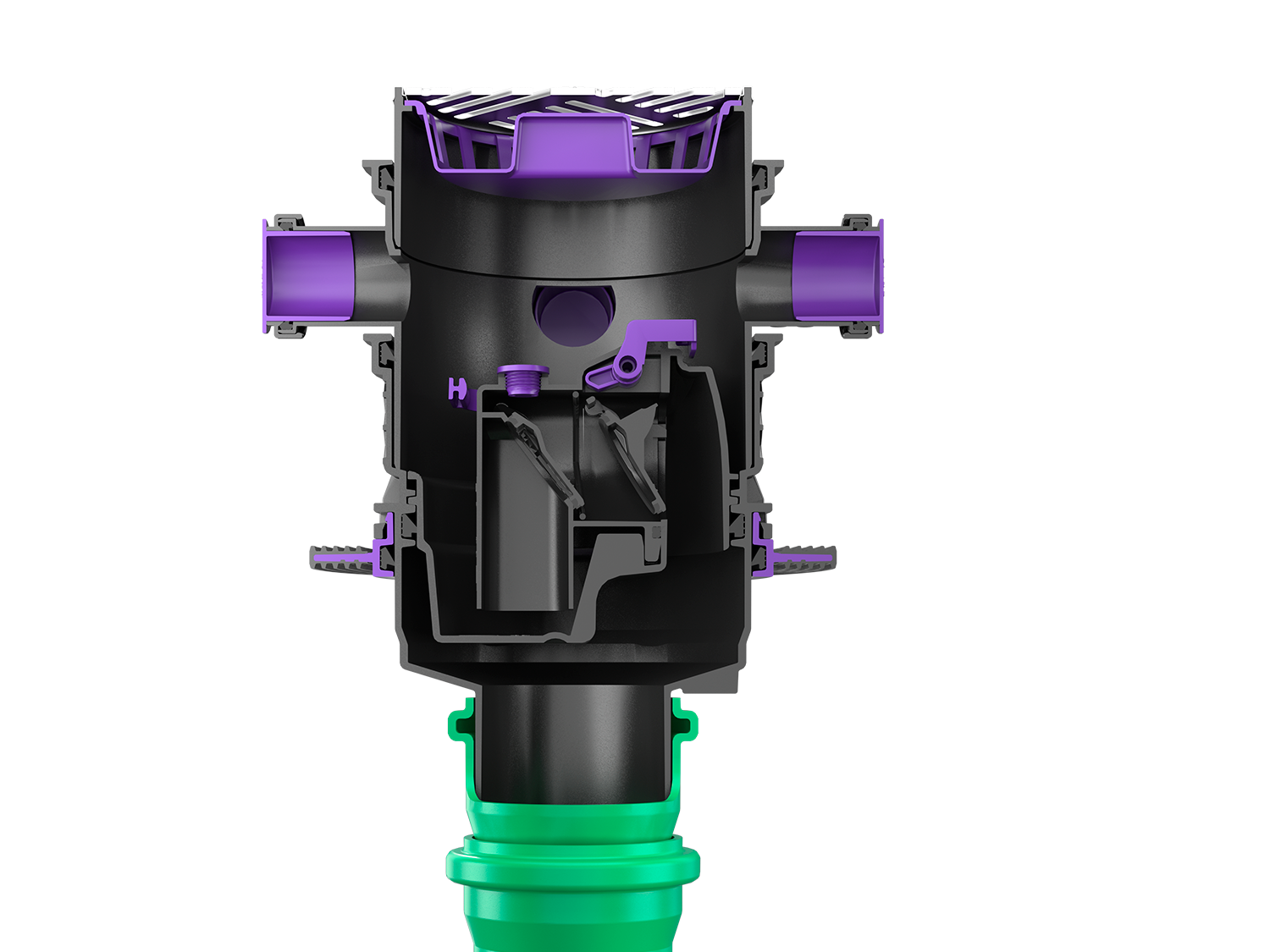

The advantage of the new design: Both the backwater unit and the inlet to the main drainage pipe are no longer installed deep under the floor slab and so remain easily and completely accessible. In combination with a clear pipe cross-section, maintenance and cleaning work on the main drainage pipe are made considerably easier. Also a waterproof sealing flange is available, so it is possible to be installed in waterproof concrete.
- vertical outlet
- easily accessible backwater valve
- pipe cross-section completely accessible
- water pressure-tight sealing flange
- tool-free maintenance
Extension section
Simply practical

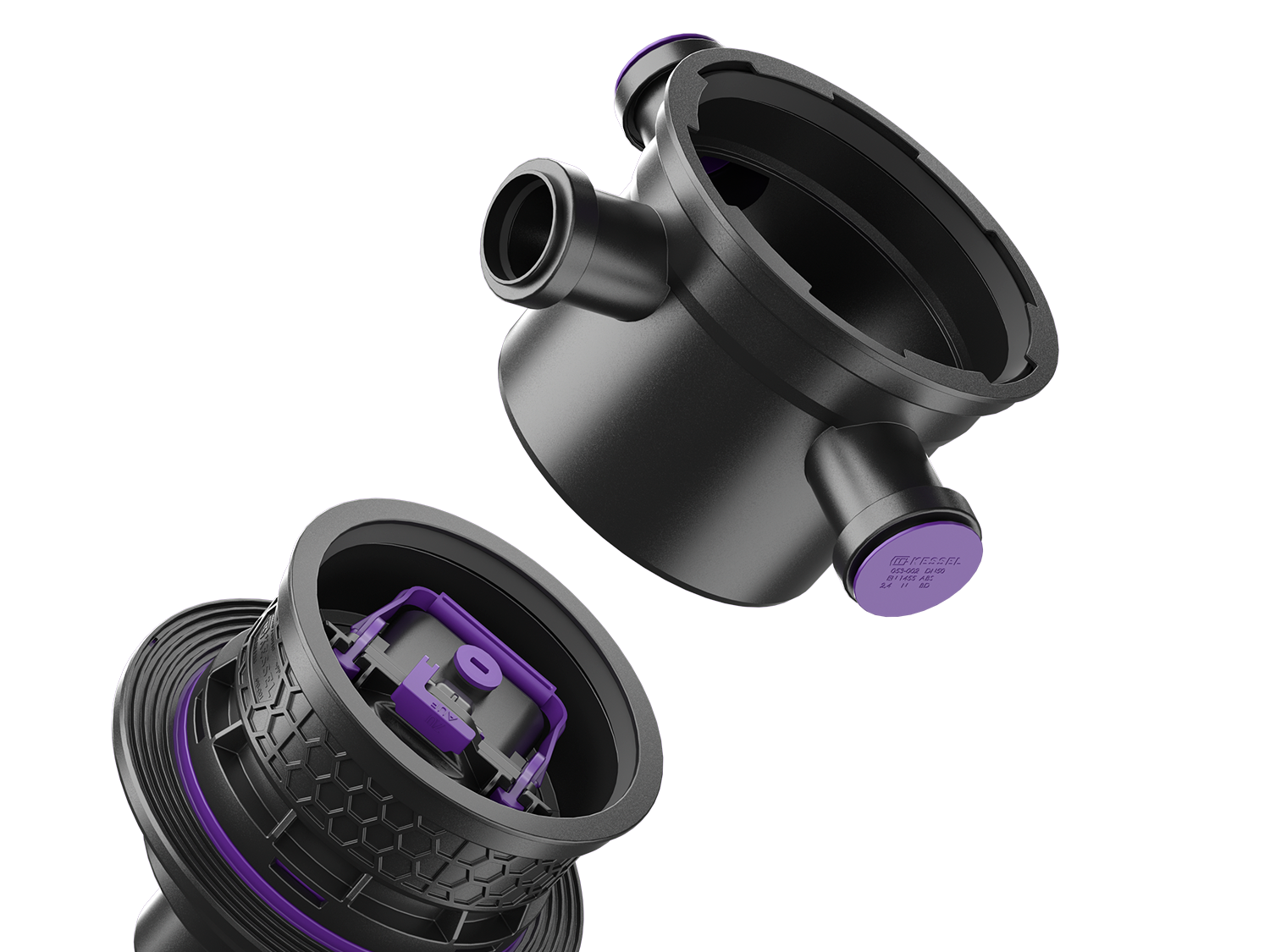

Another new feature of the Universale Plus is its innovative extension section. Using this method, for the first time, the inlets are above the floor slab. The advantages are: On the one hand, the floor slab now only has to be penetrated once – on the other hand, clear separation of the building shell and interior finishes trades is possible.
- extension section with three inlets ø 50
- installation above the floor slab
- separation of building shell/sanitary trades
- rotatable

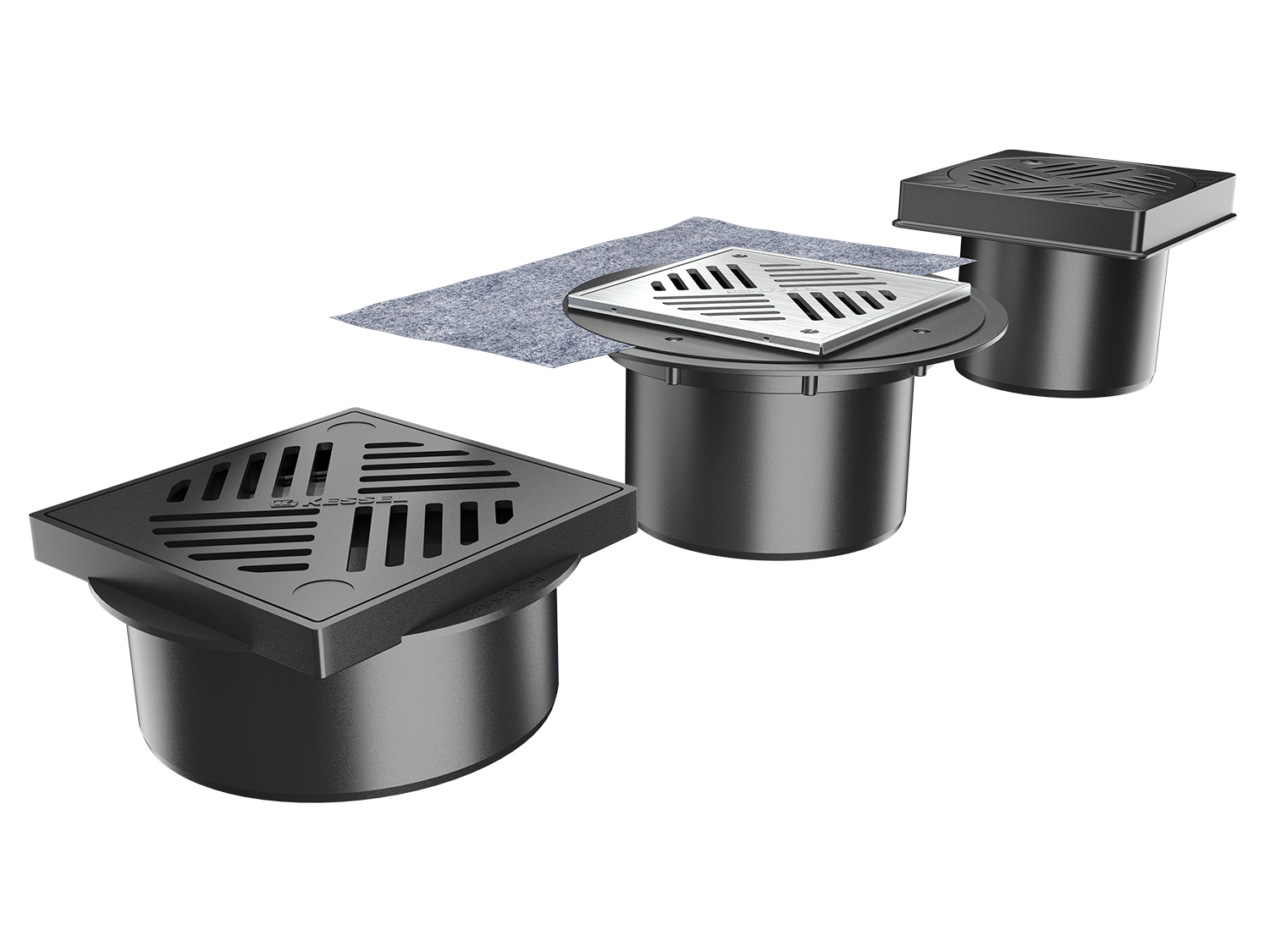

Upper section
Simply flexible

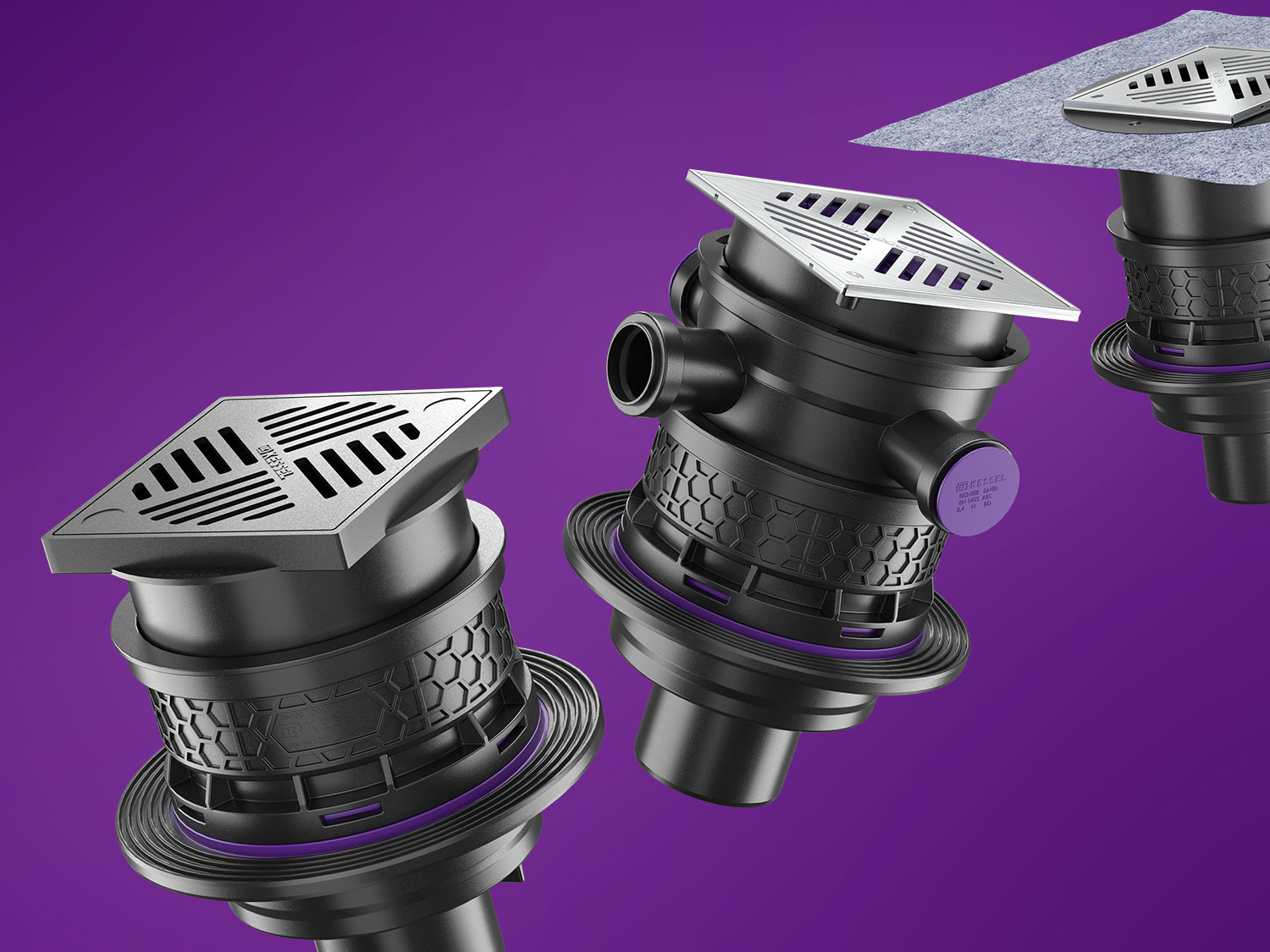

Attractive stainless steel look, tried and tested polymer or durable Ecoguss: The variety of the upper sections is as different as the possible uses of the Universale Plus. Regardless of the material, all versions have one thing in common: they can be perfectly adjusted according to the individual installation situation.
- can be rotatable, tilted and adjusted vertically
- Polymer, stainless steel or Ecoguss
- Class K 3 to B 125
Overview
Simply and systematically safe
You can select your Universale Plus basement drain as a complete item or assemble it individually using the modular system – from the waterproof sealing flange through to the variable upper section.
Variable upper sections
Rotatable, tiltable and vertically adjustable,
Class K 3 to B 125. Cover in black polymer,
stainless steel V2A screwed on,
the latter optionally for sealing in
the compound.
Extension section
Extension section ø 200
with 3 inlets ø 50
Backwater unit or odour trap
for tool-free installation
Universale Plus drain body
Versions with backwater valve
including odour trap or only odour trap
Waterproof sealing flange
Available with or without factory-mounted
waterproof sealing flange
Overview
Simply and systematically safe
You can select your Universale Plus basement drain as a complete item or assemble it individually using the modular system – from the waterproof sealing flange through to the variable upper section.
The Plus for you
Saving advantages
Simply affordable

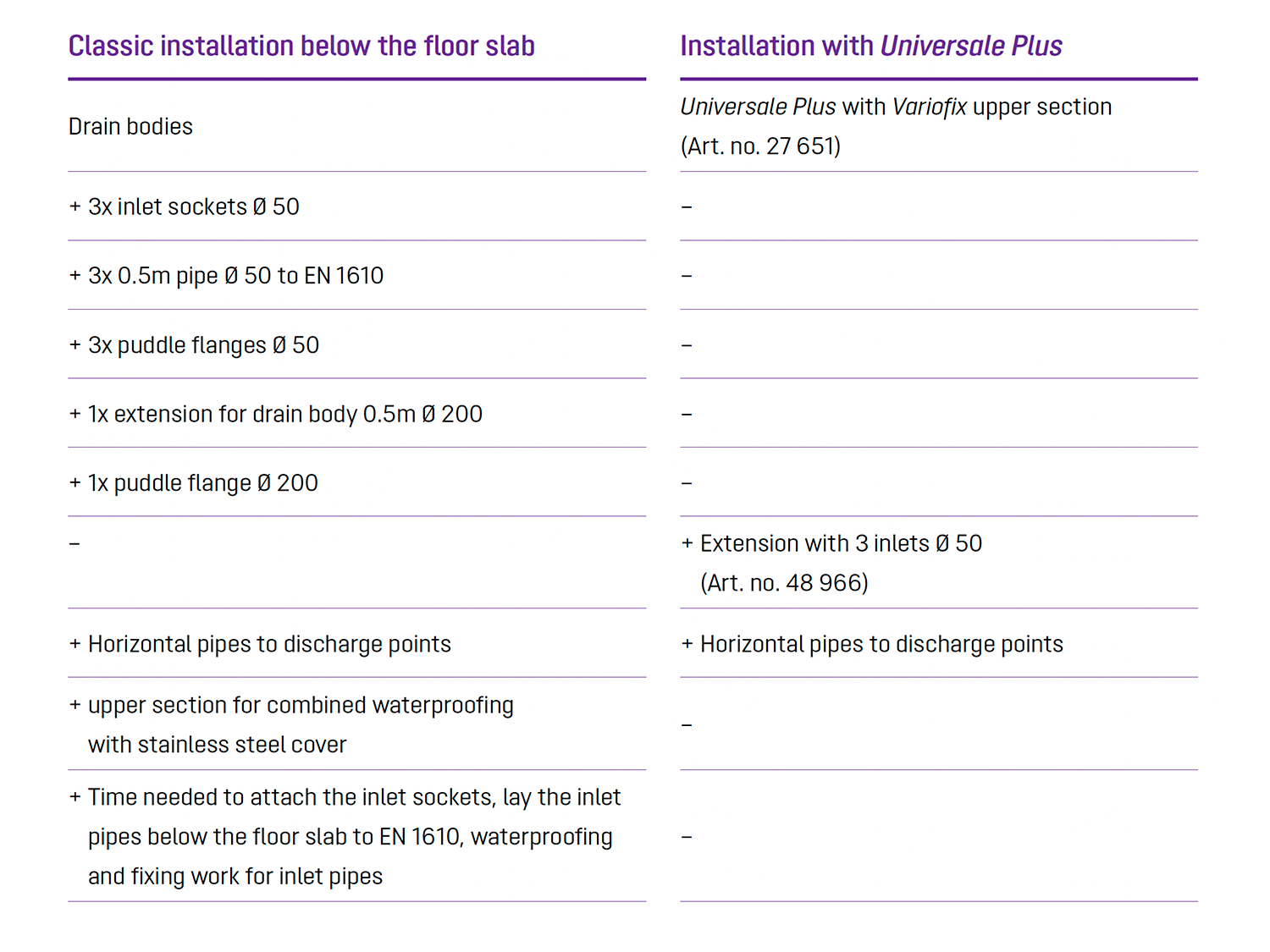

Cost efficient, from the planning through to the maintenance: The Universale Plus is the drainage solution for basements with which you can save time and money during its entire product life cycle. Where precisely are the potential savings? We show this using a specific example.
The situation:
Installation of a basement drain in housing in conjunction with a floor slab made of waterproof concrete and three inlets for connecting a shower, washbasin and washing machine. From the main drainage pipe to the combined waterproofing. Thickness of the floor slab including perimeter insulation 500 mm.
Simply dry in housing
Basement rooms in the house must be drained reliably and protected against backwater – in private households this applies to laundry rooms particularly frequently. The three inlets of the Universale Plus are eminently suitable to discharge the wastewater produced by the washing machine, washbasin, etc. As the inlets are above the floor slab, only a single penetration of the floor slab is necessary: That reduces the risk of moisture penetrating from below, which can cause serious structural damage in the long term. The Universale Plus therefore protects private households even more reliably.
Image 1: Installation with waterproofing against groundwater.
Image 2: The installation is also possible without waterproofing where high groundwater is not an issue.

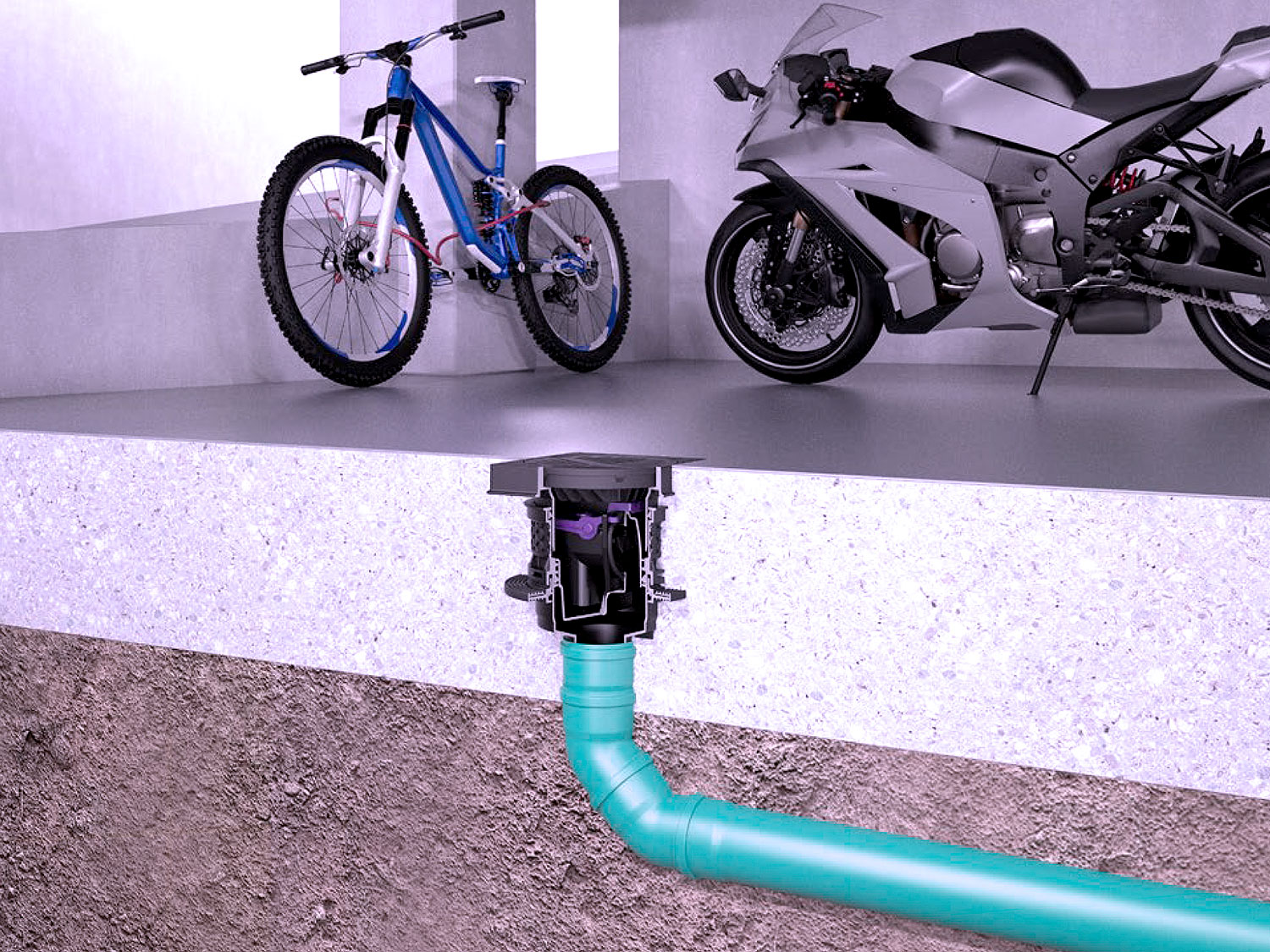

Simply stable in non-housing areas
Whether underground car park, storage room or workshop: Safe drainage of basement rooms is also necessary in nonhousing applications. Here the Universale Plus can be relied upon – with the Ecoguss upper section even up to load class B 125. This means that it can also be driven on by pallet trucks or forklift trucks. Thanks to its corrosion resistance, stability and maintenance friendliness, the Universale Plus will be your reliable partner for many years to come.
Image: With Ecoguss upper section for up to 12.5 tonne loads.
Where is the Universale Plus drain body installed?
Position the basement drain in the right place.
Well done! This is correct.
The Universale Plus is installed directly in the base plate.
Oh no! Unfortunately, that went wrong.
The Universale Plus is installed directly in the base plate.
Download
The product brochure
The most important things all in one format: Download the product brochure now with all relevant information about the Universale Plus.
Installation video
This is how the installation is done
How exactly is the Universale Plus installed? You can find out step by step in the video instructions.
